Creating Seamless Architectural Surfaces with Waterjet Mosaics in the UAE

Walk into a Dubai villa with a marble mosaic floor that looks like one continuous surface, and you’ll feel it before you analyze it. The space reads calmer. Bigger. More expensive. That effect isn’t magic. It’s geometry, alignment, and fabrication accuracy working together. Waterjet mosaic tiles are widely used in luxury villas, hotels, and architectural projects across the UAE for achieving seamless stone surfaces.

That’s where waterjet mosaic tile shines.

Unlike small-sheet mosaic tiles that telegraph grid lines, precision-cut mosaic tiles can form seamless architectural surfaces that feel “built-in” rather than “applied.” In Dubai, Abu Dhabi, and many other Gulf countries, where large-format spaces, strong daylight, and high-end finishes are the norm, those details aren’t optional. They’re the difference between a space that looks premium and a space that looks merely finished.

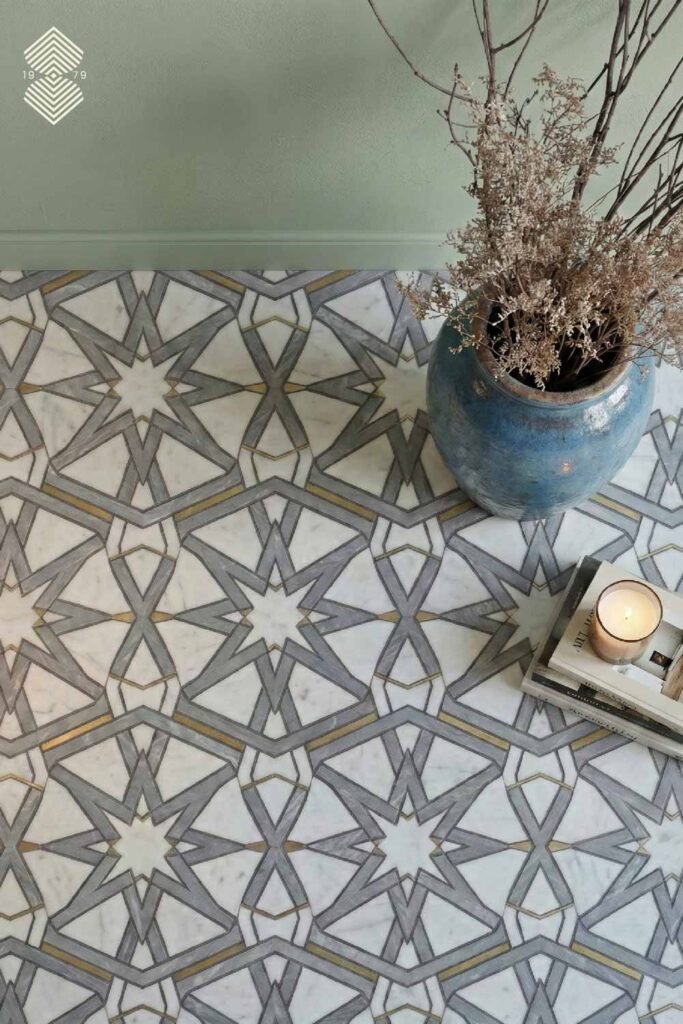

This guide explains how to create seamless surfaces with waterjet mosaic tiles, what makes them different, where they perform best in the UAE, and how to spec them so they install cleanly.

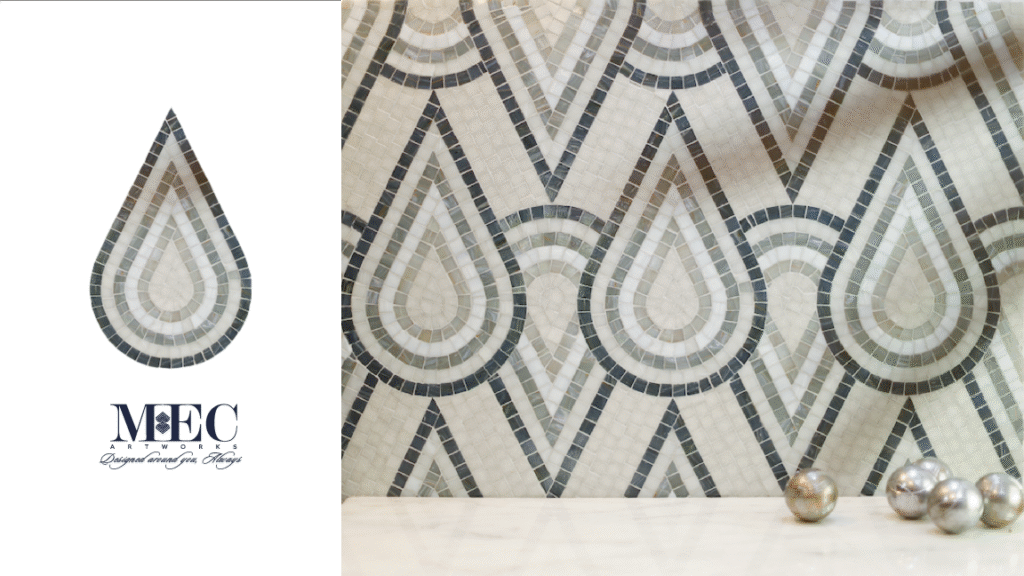

What Are Waterjet Mosaics in Architectural Design?

Waterjet mosaics are mosaics cut using a computer-guided jet of water, often mixed with abrasive grit, that slices stone, porcelain, or engineered materials with extreme control. Instead of “tiles placed in a pattern,” you get interlocking parts that fit together like a tailored suit.

How Waterjet Cutting Technology Works for Stone and Marble Mosaic Tiles

At a high level, the system pressurizes water to ultra-high pressure and forces it through a tiny orifice. Many industrial systems operate at pressures ranging from 60,000 to 90,000 PSI, depending on the intensifier ratio and setup. For a simple explanation of how intensifiers multiply hydraulic pressure into ultra-high water pressure, see ESAB’s overview of the process:
Once the stream exits the nozzle, abrasive particles do the heavy lifting on hard materials. That matters for marble mosaic tile, granite, porcelain, and sintered surfaces.

What You Get from Waterjet Mosaic Tile Cutting:

• Tight tolerances for repeatable shape accuracy (often cited around ±0.1 mm in common production ranges).
• A narrow kerf (the cut width) that can sit roughly around 0.7–1.25 mm, depending on the nozzle, pressure, and abrasive.
• No heat-affected zone, which helps preserve edge quality on certain stones.

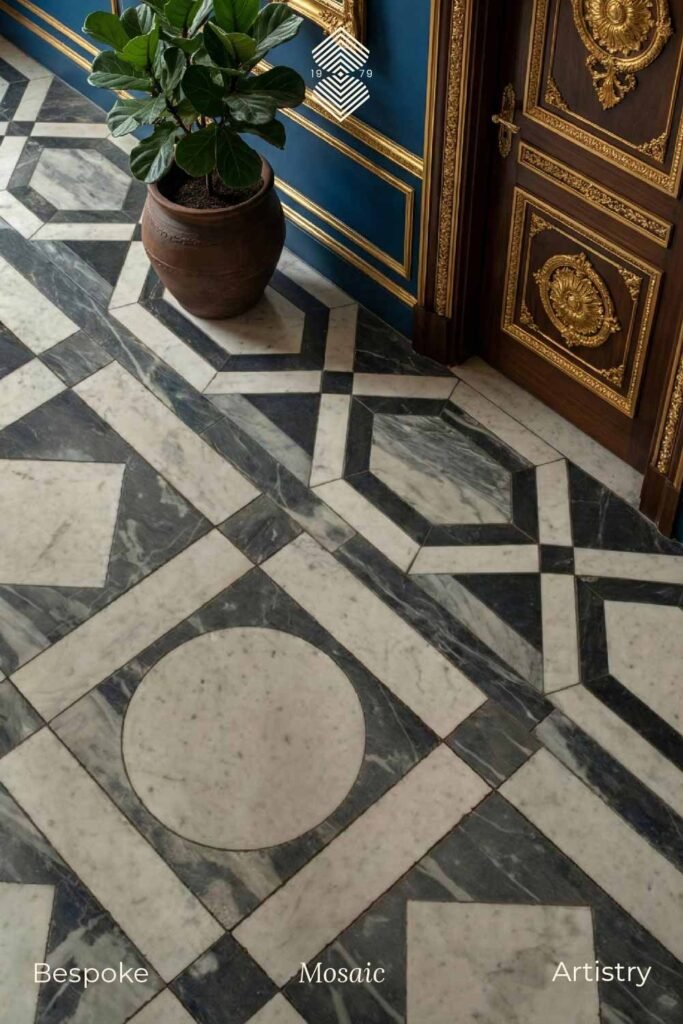

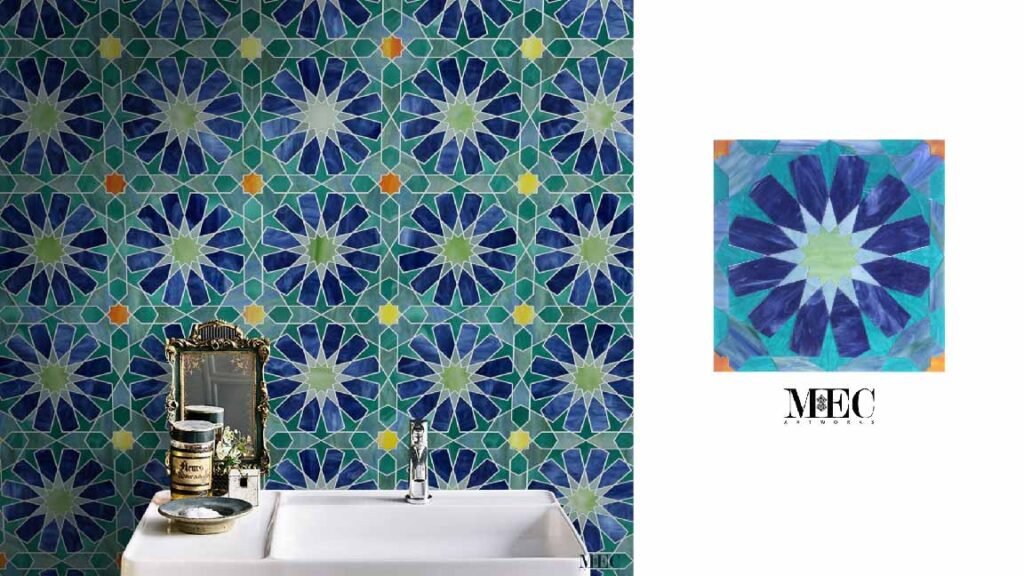

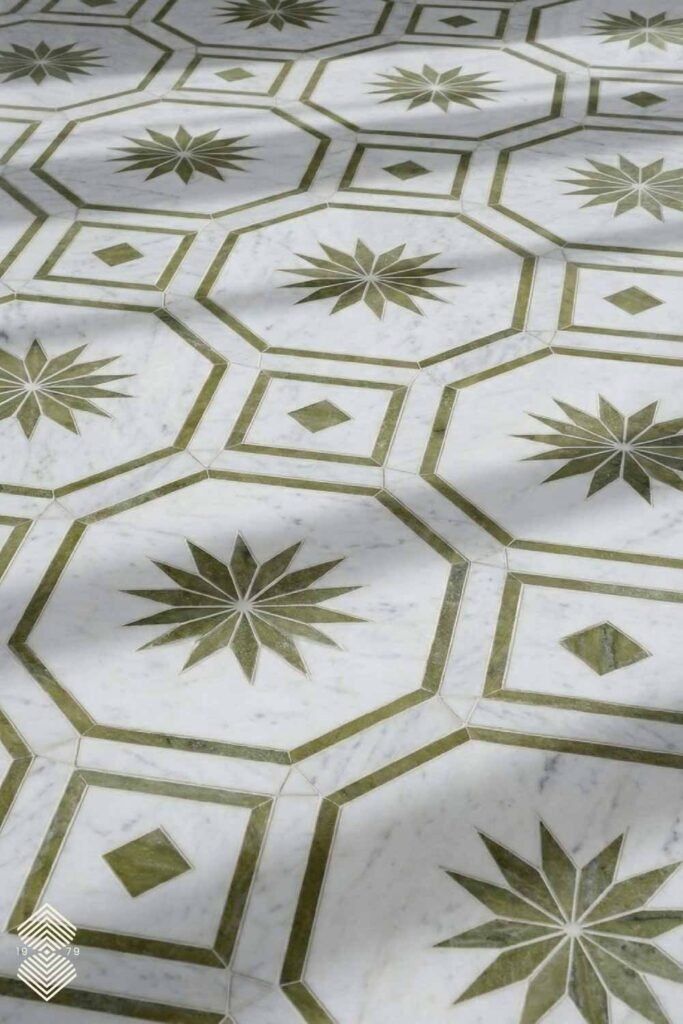

Waterjet Mosaics vs Traditional Mosaics

Traditional mosaics or classical mosaic tile designs usually rely on small tesserae (often arranged on mesh) with grout joints that remain visible. That look can be beautiful. It’s just not the same goal.

But, waterjet tile designs aim for:

• Interlocking shapes
• Controlled joint spacing
• Pattern continuity across large runs

Here’s a quick comparison:

Feature	Waterjet mosaics	Traditional sheet mosaics
Edge precision	Very high, CAD-controlled	Depends on the tile manufacturing and the installer
Joint visibility	Can be minimized	Typically visible as a grid
Pattern scale	From small inlays to large murals	Usually limited by sheet format
Best use	Seamless stone mosaic patterns, medallions, geometry	Textural surfaces, gradients, small-format decoration
Visual effect	“Carved into the surface.”	“Applied as a tile layer.”

If your design intent is “one uninterrupted architectural skin,” architectural mosaic surfaces benefit from waterjet cutting.

Why Seamless Architectural Surfaces Matter in Modern UAE Architecture

In the UAE, light is ruthless in the best way. Bright sun and crisp shadows reveal alignment errors fast. Large villas and hospitality projects also amplify repetition. If a joint line wanders, your eye catches it from the opposite end of the room. Dubai and Abu Dhabi luxury projects also require seamless surfaces to maintain their elegance.

Seamlessness isn’t only aesthetic. It also supports:

• Clear spatial flow
• Stronger visual hierarchy
• Cleaner transitions between zones

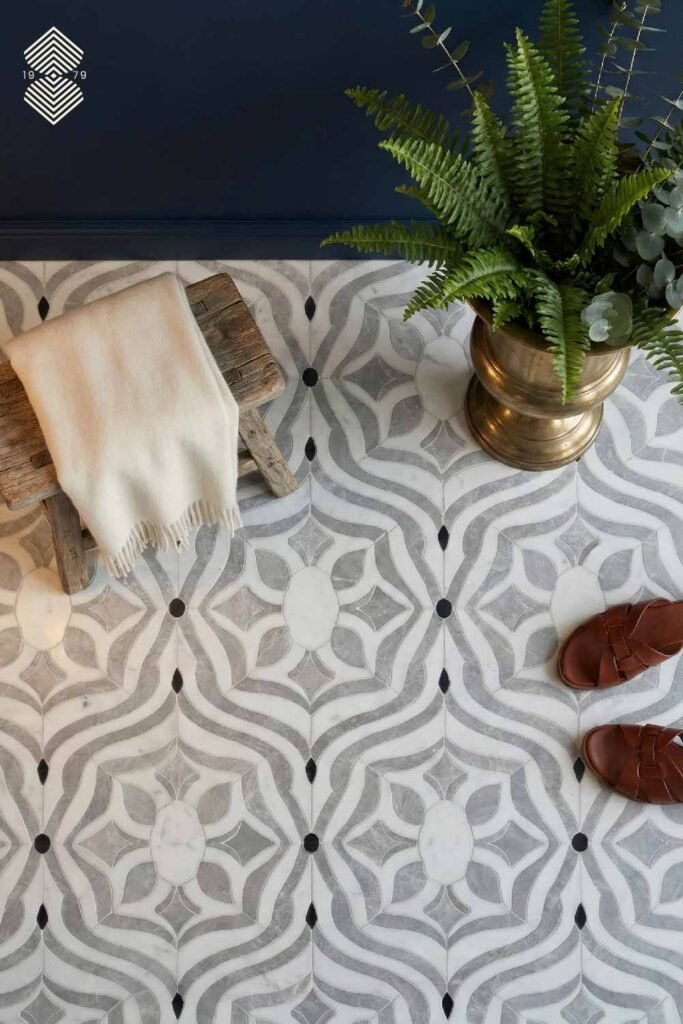

Visual Continuity in Open-Plan Luxury Villas

Open-plan living sounds simple until you design it. You need “quiet continuity” so the architecture can breathe. A floor with visible grid breaks can chop space into rectangles. A seamless stone mosaic tile pattern can do the opposite. It pulls the room together.

You’ll see these mosaic tile floors especially in:

• Double-height atriums
• Majlis-inspired reception rooms
• Great rooms that run 15–25 meters long
• Indoor-outdoor transitions toward courtyards and shaded terraces

A seamless mosaic floor tile pattern behaves like a well-composed soundtrack. It supports the mood, and it doesn’t steal the scene.

Seamless Design Trends in Contemporary UAE Projects

UAE cultural terrain, contemporary design often leans on:

• Minimal lines
• Large surfaces
• High-contrast stone palettes
• Islamic geometry reinterpreted with modern restraint

Waterjet lets those motifs look architectural rather than decorative. You can keep the mosaic pattern crisp, scale it up, and align it to the building grid.

And because Gulf countires projects frequently use premium mosaic tile materials, the fabrication method needs to match the material story. You can’t put couture marble in a “good enough” layout. It feels off.

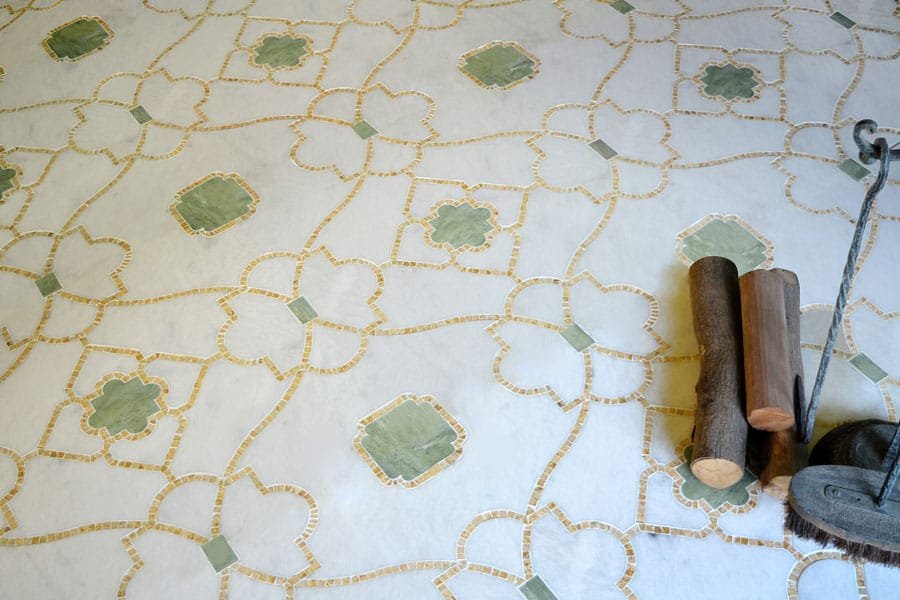

How Waterjet Mosaics Create Seamless Architectural Surfaces

Seamlessness comes from a chain. Break one link and the whole effect collapses.

Precision Cutting and Tight Joints in Waterjet Mosaic Tiles

Waterjet cutting supports extremely consistent shapes, which helps you control joint spacing. We, as expert mosaic tile fabricators, cite common tolerances around ±0.1 mm for typical work, with tighter capability on some systems and setups.

Also, we pay attention to kerf width, because it impacts how edges meet and how much grout shows. Several manufacturing references describe kerf ranges around 0.7–1.25 mm, depending on process variables.

That combination of shape accuracy and narrow cut width makes it possible to design joints that read as hairlines rather than highways.

Custom Pattern Alignment for Large Surfaces

Here’s the part people skip: alignment is designed, not hoped for.

Large-scale seamless work needs:

• A master CAD layout mapped to real dimensions
• A repeat strategy that avoids micro-drift
• Controlled reference points for installers

On a 20-meter run, a tiny shift becomes a visible wave. Waterjet helps you fabricate correctly, but you still need layout intelligence.

Custom Scaling for Oversized UAE Floor Plans

Dubai and Abu Dhabi homes often feature oversized proportions. Designers frequently upscale patterns so they don’t look busy.

Waterjet mosaics support that because you can:

• Increase motif diameter (medallions, stars, rosettes)
• Thicken banding
• Reduce visual noise by controlling grout exposure

This is where seamless mosaic designs stop being “patterned tile” and become architectural mosaic surfaces.

Waterjet Mosaics vs Large-Format Tiles for Seamless Design

Large-format tiles can look seamless too, so why choose mosaic tiles at all?

Because marble or glass mosaic tiles can do what big tiles can’t:

• Curves
• Medallions
• Complex transitions
• Multi-material inlays without chunky joints

Here’s a practical comparison of mosaic flooring and tiles.

Goal	Better choice	Why
Huge minimal floors with few lines	Large-format tile	Fewer grout lines overall
Curved motifs or interlocking geometry	Waterjet mosaics	Shapes join cleanly
Brand crests, logos, signatures	Waterjet mosaics	Precision cut edges
Complex borders and thresholds	Waterjet mosaics	Controlled alignment
Fast, simple installation	Large-format tile	Less assembly complexity

If your concept needs artistry with architectural discipline, waterjet mosaics usually win.

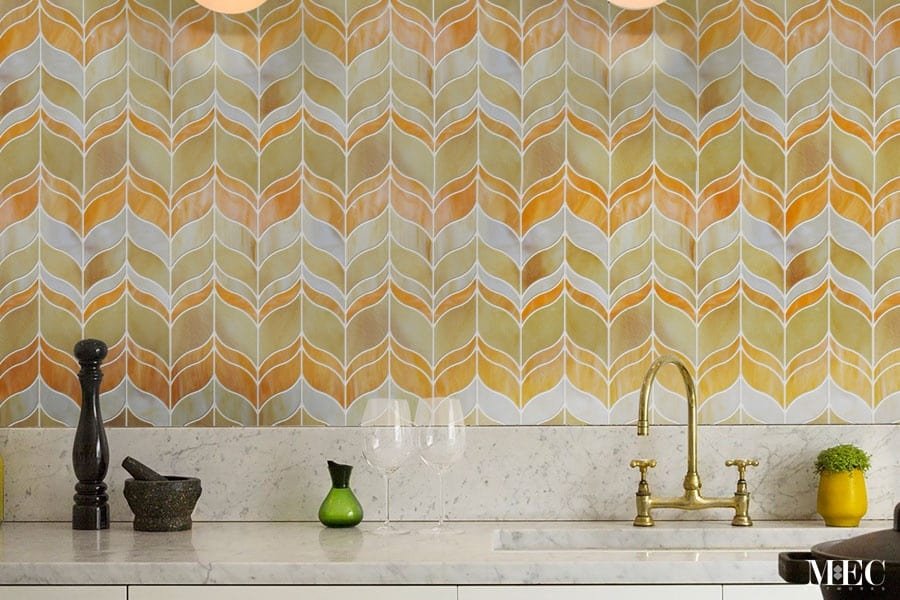

Applications of Seamless Waterjet Mosaic Designs in the UAE

If you can draw it, you can probably cut it. The real question is where it performs best.

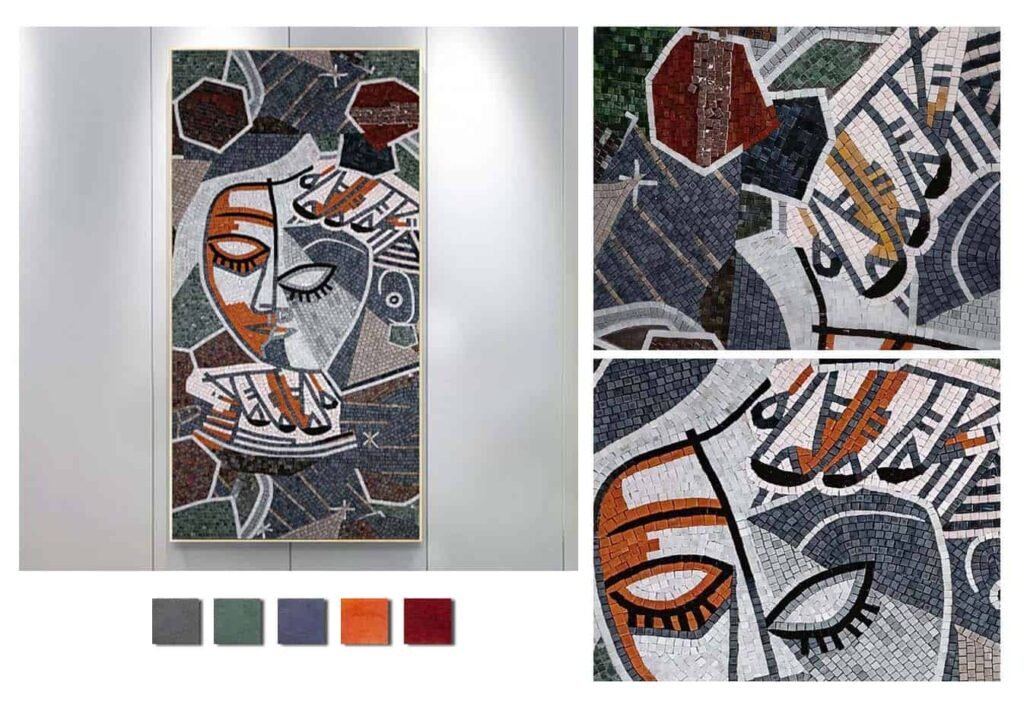

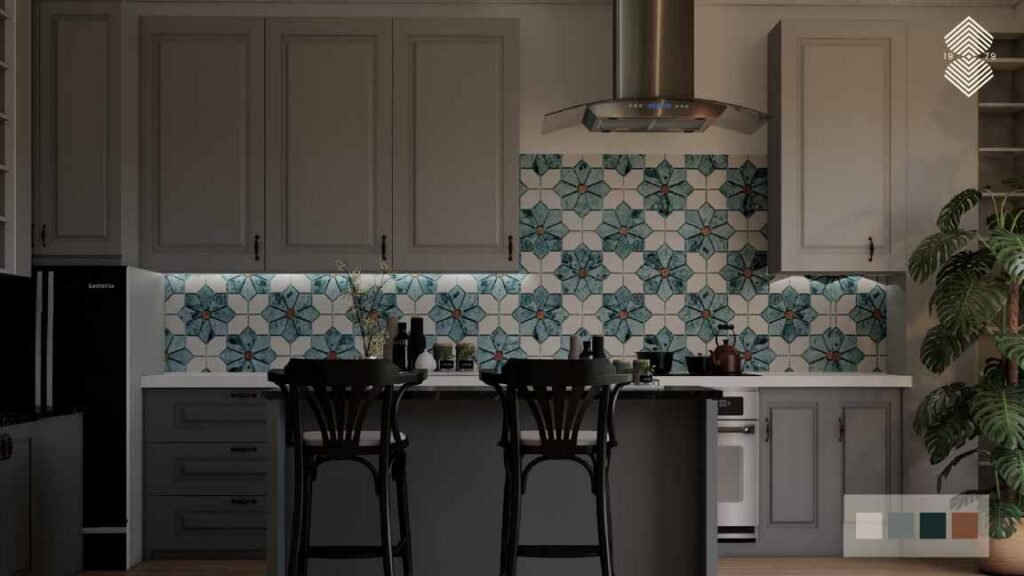

Interior Walls and Feature Panels

Waterjet mosaics look exceptional on interior walls because:

• You can make clean silhouettes with crisp stone boundaries
• Wall lighting highlights edge precision
• You can integrate logos, crests, or subtle motifs without a busy texture

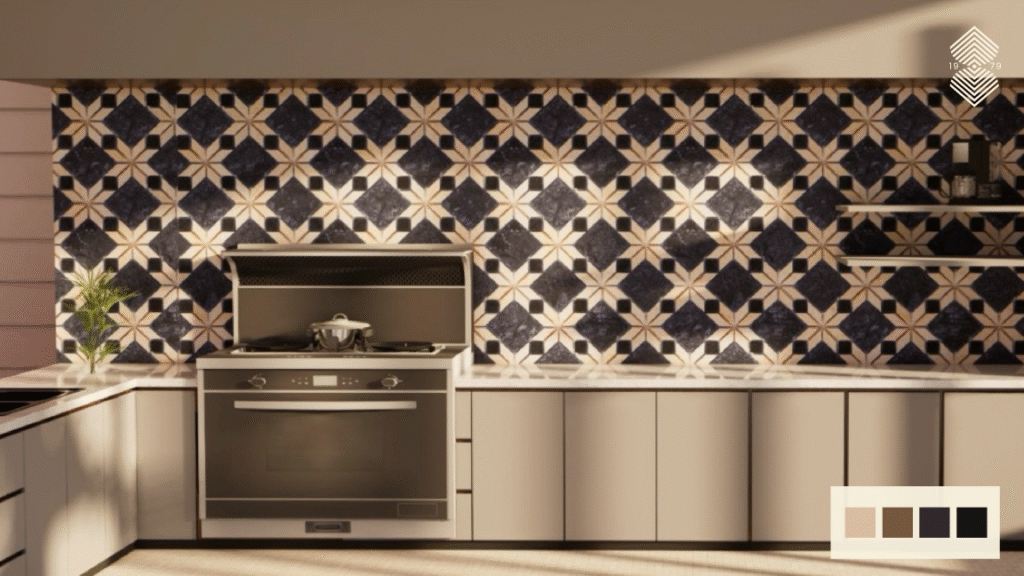

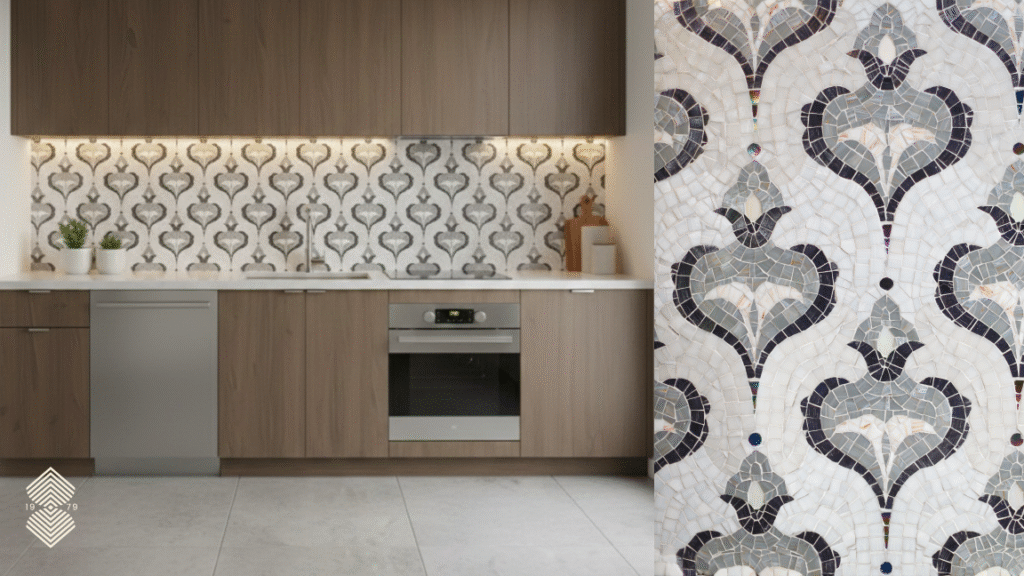

Common waterjet mosaic wall placements are:

• Hotel reception backdrops
• Kitchen feature walls behind console tables
• Lift lobbies in luxury towers
• Private majlis focal walls

Design tip: Use fewer materials than you think you need. Two or three stones with strong tonal contrast often look more “architectural” than a rainbow.

Luxury Floors and Staircases

Mosaic luxury floor design demands discipline. People walk on them. Furniture drags across them. High heels exist.

Waterjet mosaic floor applications excel when you want:

• Grand entrance medallions that align with door axes
• Staircase borders that turn corners without awkward cuts
• Stair stringer patterns that remain crisp across risers and treads

If you want the floor to read as a single composition, not a patchwork, waterjet is your friend.

Pools and Spa Installations

Waterjet mosaics perform beautifully in pools and spa environments because:

• Precision cutting allows smooth curves that follow pool contours
• Tight joints reduce visual disruption underwater
• Custom gradients and geometric motifs stay crisp even through water refraction
• You can integrate subtle branding or symbolic elements without overpowering the space


Water changes how surfaces look. Light bends. Lines distort. That’s why precision-cut mosaics matter in aquatic settings. When edges align properly, the design still reads clearly beneath moving water.

Common waterjet cutting spa and pools tile placements are:

• Infinity pool features floors in private villas
• Spa relaxation lounges with mosaic accent walls
• Hammam-inspired wellness spaces
• Decorative bands along pool perimeters
• Underwater medallions centered in courtyard pools


In luxury UAE residences, pools aren’t secondary features. They’re the focal architecture. Seamless mosaic designs help them feel intentional rather than ornamental.

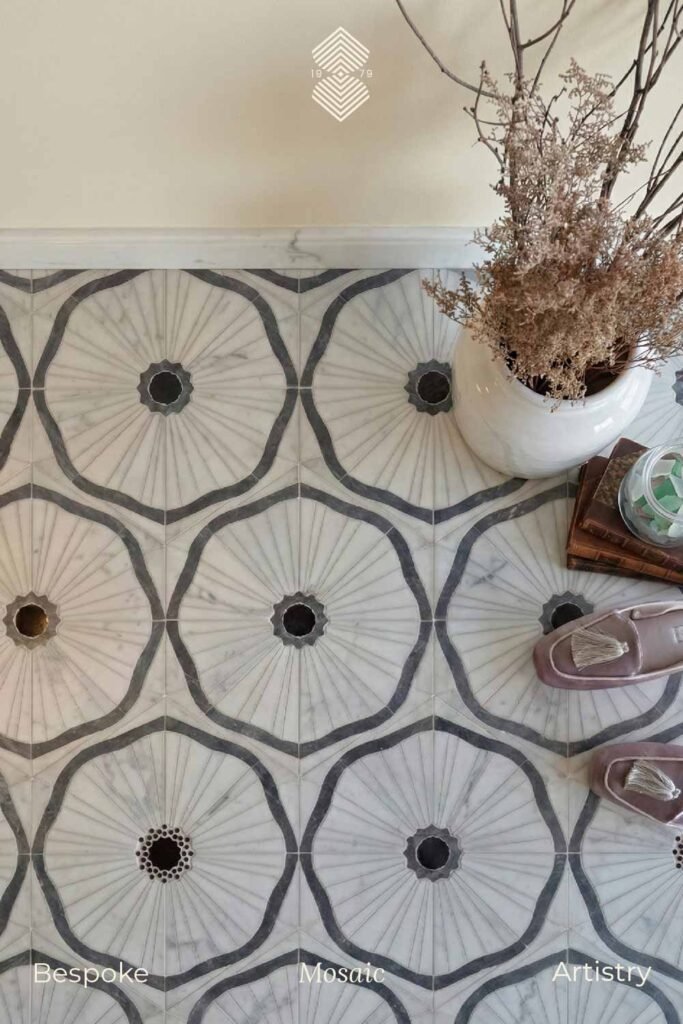

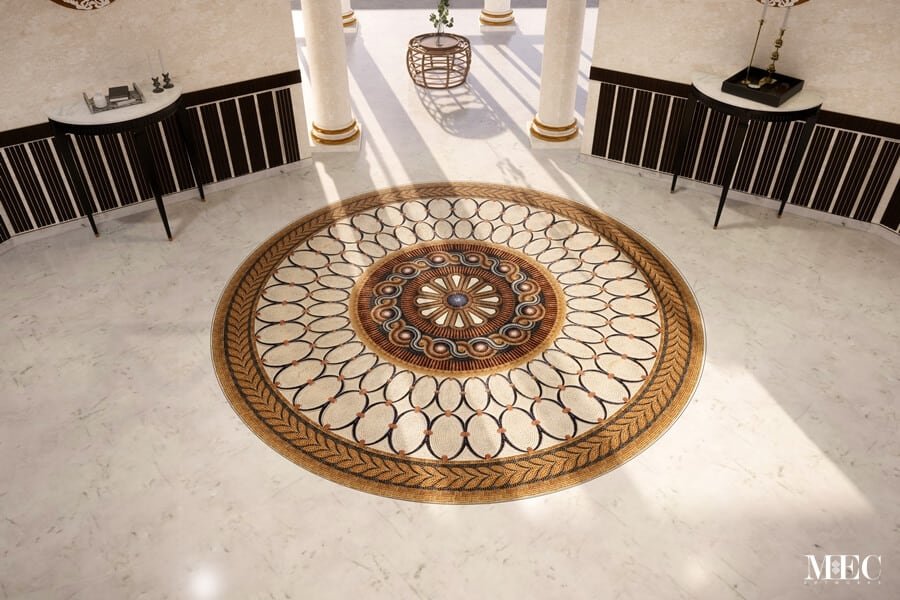

Medallion Centers

Waterjet mosaics are especially powerful for medallion centers because:

• Interlocking segments create perfectly round compositions
• Complex geometry aligns cleanly with the room axes
• Multiple stone types can integrate without bulky transitions
• Borders and inlays connect seamlessly to the surrounding flooring


A mosaic medallion only works when it feels anchored. Even a few millimeters of misalignment can shift the entire visual balance of a room. With waterjet tile designs, each segment fits into the next with controlled precision, allowing the full composition to read as a single engineered piece.

Common waterjet cutting medallion design mosaic tiles placement are:

• Grand villa entrances
• Double-height atrium floors
• Hotel lobby centers
• Mosque-inspired geometric floor features
• Formal dining or majlis rooms


In large UAE interiors, medallion centers often act as spatial anchors. When fabricated with precision and installed correctly, they don’t interrupt the surface. They elevate it.

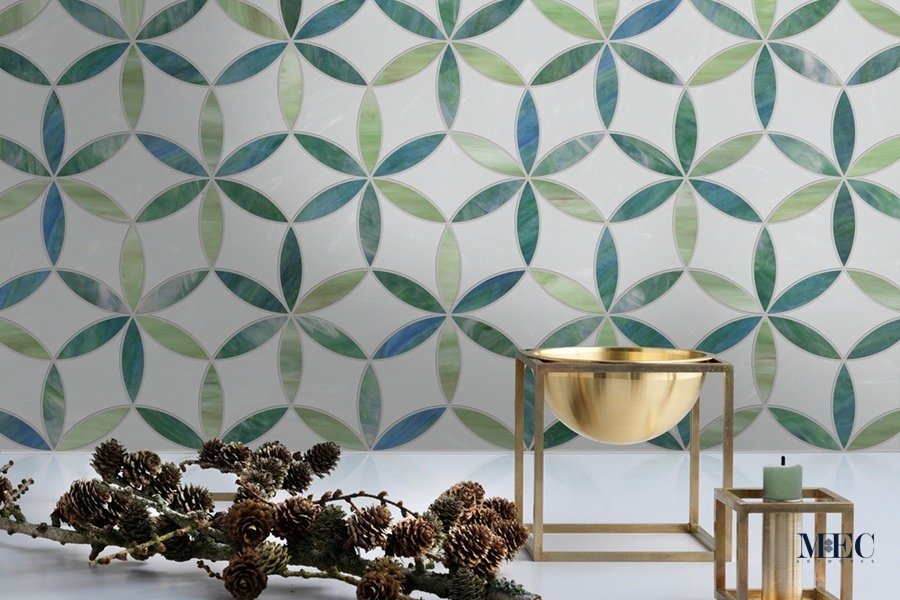

Facades and Exterior Architectural Elements

Outdoor use is absolutely possible, but you must specify it. In the UAE, exterior conditions include:

• Extreme summer heat
• High UV exposure
• Dust and sand abrasion
• Coastal humidity and salt air near the shoreline

Dubai’s climate sits within a hot desert context, and summer conditions can be intense for materials and adhesives. Climate references also document rising extremes and severe heat events in the region, which makes robust detailing even more important.

Exterior best mosaic tiles practice often includes:

• Choosing low-porosity materials
• Using exterior-rated adhesive and grout systems
• Allowing movement accommodation where required
• Selecting finishes that balance slip resistance and cleanability

Tip: A Quick Spec Checklist for Seamless Waterjet Mosaic Designs: If you want a clean result, align on these points early: Surface type: interior, wet area, exterior, or semi-exterior Material palette: marble, limestone, porcelain, or mixed Joint goal: “minimal,” “quiet grid,” or “expressed.” Pattern mapping: CAD layout scaled to real dimensions Control points: where alignment must never drift Installer capability: proven experience with complex mosaics Maintenance plan: sealing schedule (if stone), cleaning approach

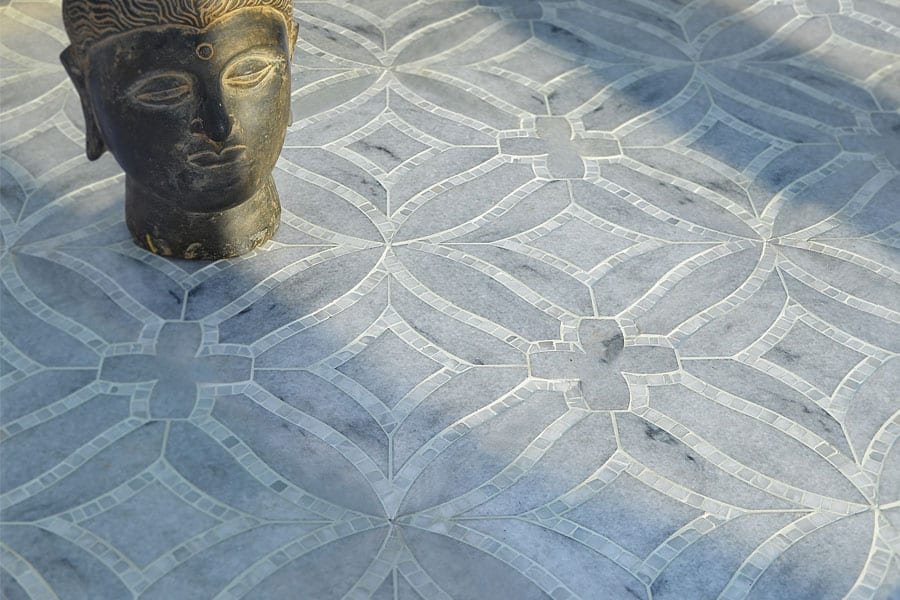

Mosaic Design Advantages of Waterjet Mosaic Technology

If traditional mosaics are poetry, waterjet mosaics are architecture. They behave differently.

Freedom of Geometric and Organic Patterns

Waterjet cutting mosaic tiles allows:

• Razor-sharp geometry (stars, polygons, interlocks)
• Complex arabesque curves
• Calligraphy-style linework (within practical thickness limits)
• Repeating tessellations that align cleanly

This matters in the UAE, where geometry is not just a decorative element. It’s a heritage language.

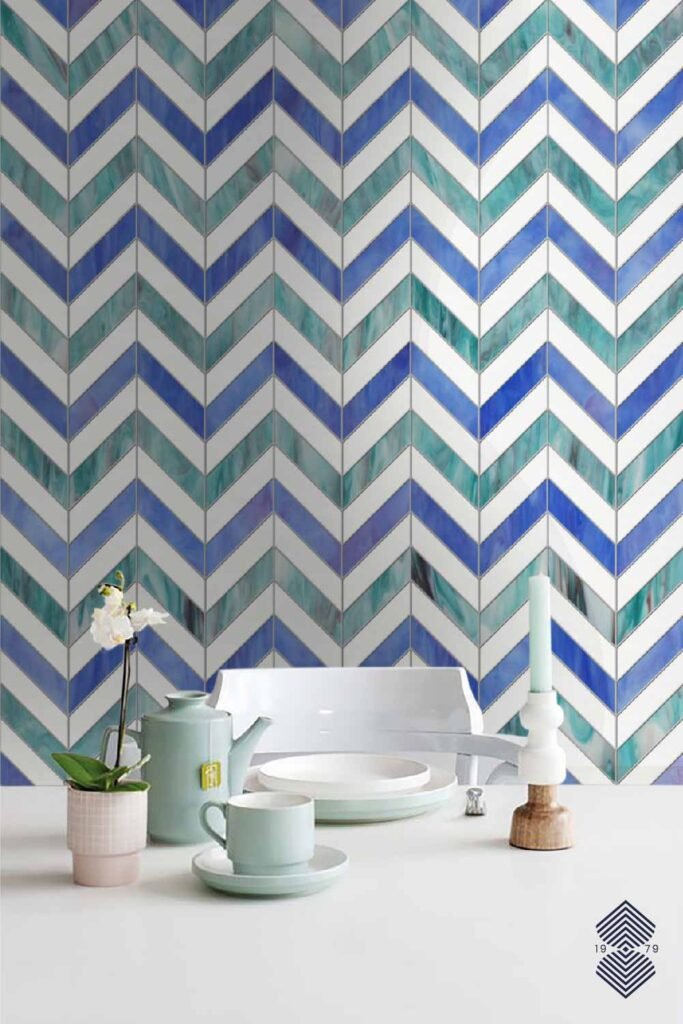

Pattern types that benefit most from waterjet:

• Islamic geometric grids with tight linework
• Rosette medallions with layered rings
• Interlaced bands that must stay consistent
• Contemporary “fracture” or “ribbon” compositions

And yes, you can blend modern and classical. That’s often where the best work lives.

Material Versatility: Marble, Stone, Porcelain, and More

Waterjet doesn’t lock you into one material family. You can cut:

• Marble mosaic stone tile
• Limestone and travertine
• Granite (with correct tooling and settings)
• Porcelain slabs
• Engineered stone in certain use cases

However, each material behaves differently. You must match design thickness, minimum piece size, and finish to real-world performance.

Climate Considerations for Waterjet Mosaics in the UAE

UAE conditions influence detailing. If you design like you’re in a mild climate, the site will correct you. Not gently.

Managing Heat Expansion and UV Exposure

Heat drives expansion and contraction in assemblies. The sun also heats exterior surfaces unevenly. That can stress the bond line if detailing is sloppy.

Practical ways to manage it:

• Specify exterior-rated adhesives and grouts
• Respect movement joints in the overall tiling system
• Avoid extremely tiny exterior pieces unless fully engineered
• Use lighter stone colors outdoors when possible (they heat less)

If you’re designing for coastal areas, salt air adds another layer. Sealers and grouts must handle that environment.

Sand, Humidity, and Real-World Maintenance

Dubai and Abu Dhabi don’t just get dust. They get fine sand that behaves like mild sandpaper.

For exterior and semi-exterior areas:

• Choose finishes that hide micro-abrasion
• Specify sealing based on stone porosity
• Plan wash-down routines for courtyards and terraces

Humidity can also influence grout curing and long-term staining risk. Good installers manage this through proper prep and product selection.

Installation Considerations for Seamless Mosaic Surfaces

This is where “perfect design” meets the reality of job sites. A waterjet mosaic can arrive flawless and still install poorly.

Substrate Preparation and Surface Leveling

Seamlessness depends on flatness. Even tiny substrate dips can create lippage that catches light.

For best results:

• Demand a properly prepared substrate
• Verify flatness tolerances suitable for the chosen tile thickness
• Use the right underlayment and waterproofing system in wet areas
• Dry-lay key sections when patterns must hit exact centerlines

When the substrate is wrong, the installer compensates. That compensation shows up as alignment drift and uneven joints.

Why Skilled Installation Matters More Than You Think

A skilled installer, like MEC Artworks:

• Locks reference lines early
• Preserves alignment across transitions
• Manages grout color so joints disappear
• Handles corners and thresholds without “pattern break.”

A less skilled installer may:

• Let the pattern float
• Cut on-site without respecting the CAD map
• Createa  visible joint variation that defeats the whole purpose

If you’re specifying seamless architectural surfaces, treat installation as part of the design. It isn’t an afterthought.

Maintenance of Seamless Waterjet Mosaic Surfaces

Maintenance should feel boring. That’s a compliment.

Cleaning and Sealing Best Practices

Use material-appropriate cleaning. Marble and limestone dislike acidic cleaners. Porcelain tolerates more. Always match products to the surface.

General best practices:

• Clean spills fast, especially on natural stone
• Use top pH-neutral cleaners for marble and limestone
• Re-seal porous stone based on exposure and usage
• Use entry mats and dust control in high-sand environments

Long-Term Durability and Wear Resistance

A well-specified mosaic tile installation can last decades. Longevity depends on:

• Proper substrate and waterproofing
• Correct setting materials
• Movement accommodation
• Realistic maintenance

For the tile performance testing context, ASTM standards like ASTM C648 cover breaking strength methods for ceramic and mosaic tile categories.

That doesn’t “prove” a specific mosaic will last forever. It does underline that performance evaluation exists, and specs should be evidence-minded.

Why Architects and Designers in the UAE Choose Waterjet Mosaics

The UAE has no shortage of nice finishes. The projects that stand out do one thing well: they make the finish feel intentional.

Mosaic Tile Customization Without Design Limits

Waterjet supports:

• True bespoke geometry
• Custom medallions that align with architectural axes
• Borders and transitions engineered to match the plan

This is why custom waterjet mosaic tiles often appear in entrances, lobbies, and signature rooms. They carry identity.

Perfect for Islamic Geometry and Contemporary Patterns

Islamic geometry mosaic tile design often fails when:

• The line thickness varies
• joints break continuity
• corners don’t meet cleanly

Waterjet cutting helps you maintain crisp edges and repeat accuracy. You can also modernize the Islamic mosaic tradition with:

• Larger-scale motifs
• Reduced color palettes in the interior
• Negative space emphasis

Precision That Matches High-End UAE Construction Standards

High-end UAE mosaic tiles build leave little room for error. Stonework is carefully reviewed. Junctions matter. Designers expect alignment to hold from one end of the space to the other. In that environment, precision isn’t optional. It’s expected. That’s where MEC Artworks approaches waterjet mosaics, with a focus on engineered alignment and controlled detailing. So, the finished custom mosaic tile surface feels deliberate, not dependent on chance.

About MEC Artworks‘

At MEC Artworks, waterjet mosaic fabrication is approached as architectural engineering, not just tile production. From CAD-mapped layouts to precision cutting and controlled detailing, each project is developed to deliver seamless mosaic designs that hold their alignment from concept to installation. Whether for commercial spaces, luxury hotels, pools, or statement medallions, the focus remains the same: create architectural mosaic surfaces that feel intentional, refined, and built to last in the UAE environment.

Final Thoughts: Waterjet Mosaics and Seamless Designs

Seamless architectural surfaces don’t happen by accident. They come from precision cutting, intelligent layout planning, disciplined installation, and materials that are chosen with climate and context in mind. In the UAE, where scale is generous and light is unforgiving, even small alignment flaws become visible. That’s why waterjet mosaics continue to define high-end residential, hospitality, and commercial interiors across Dubai and Abu Dhabi. When geometry aligns, joints stay refined, and patterns scale correctly, the surface doesn’t look assembled. It feels composed. And that’s the difference between decoration and architecture.

FAQs:
